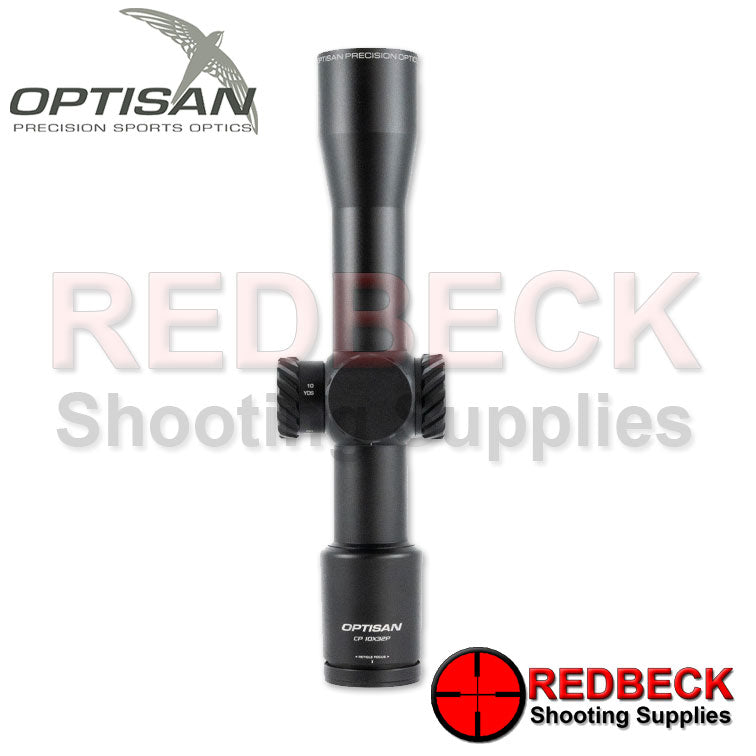

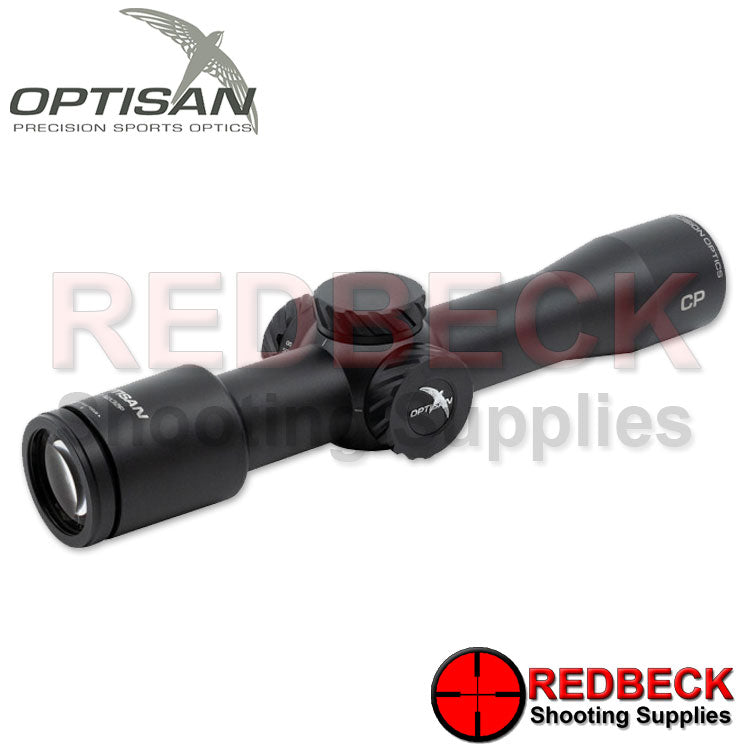

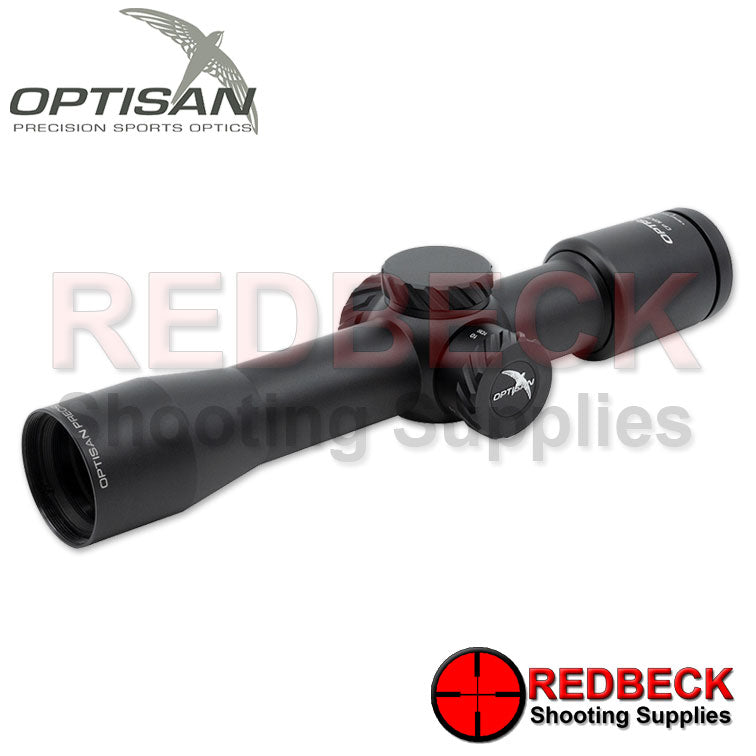

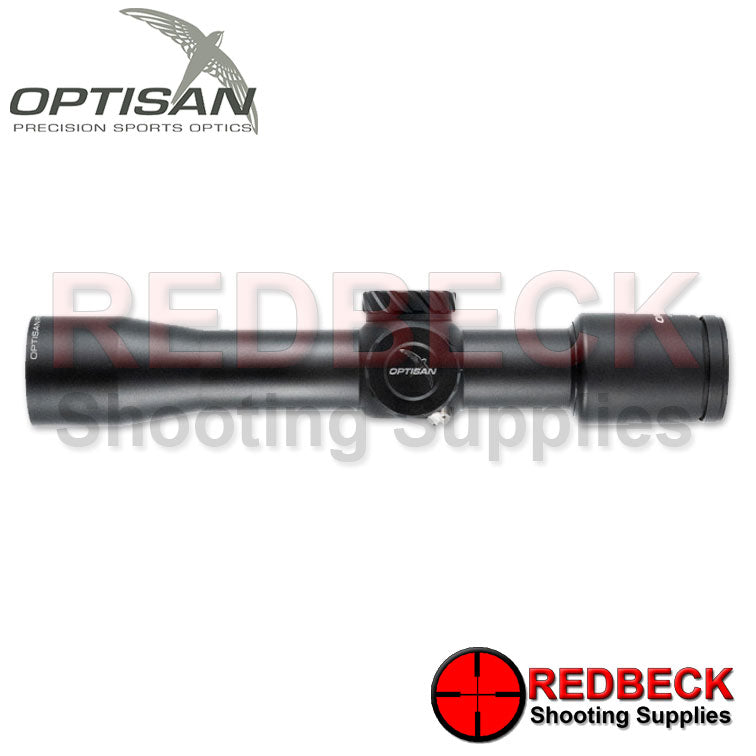

Optisan CP Compact 10x32 SFP MIL MH10 Non-Illuminated Rifle Scope

DESCRIPTION

Compact and lightweight - well matched to the latest generation of compact rifles.

Optisan has developed the CP series to have minimal parallax error. This means you experience a minimal shift in the point of impact when shooting targets at varying distances, without adjusting your focus. This is especially useful when shooting HFT or hunting in the field when adjusting the parallax before each shot is not possible.

Optisan CP scopes have a standard length of eye relief allowing a suitable distance between your eye and objective, whilst shooting. This means that you can use this scope on guns with recoil such as Spring guns, Rimfire and Centrefire.

The 32mm objective and short overall length brings the weight towards the shooter; improving the balance and handling of the gun.

Compact design
At just 25.4 cm long and weighing less than 0.48 kg, the CP is the ideal companion for compact and lightweight rifles.

Minimized Parallax error

Equipped with a 32mm objective lens, the CP effectively reduces the impact of Parallax error, resulting in minimal shift of impact as you change your head position or distance to target.

This means you can shoot targets at various distances without experiencing any shift in point of impact, making it a valuable asset in competitive shooting scenarios.

Additionally, the parallax adjustment range of the CP ranges from 10 yards up to 500 yards to infinity, ensuring optimal performance across varying shooting distances.

Springer Rated
Champion shooters have field-tested this rugged riflescope for over a year on a springer rifle, proving its ability to withstand double direction recoil of up to 6000j post-barrel muzzle velocity. It’s not just limited to air rifles, as it’s also designed to hold centerfire firearms with ease.

Sleek Design with Extremely low-profile turret
All stainless steel extremely low-profile turret with 10 MRAD of adjustment per turn. No obstruction of view even when the night vision eyepiece is attached.

What comes in the box
2.5” sunshade, Lens covers.

SPECIFICATION

• Magnification (High/Low): 10x
• Objective Diameter: 32mm
• Outer Diameter Objective: 40mm
• Field of View (FOV) (min/max): 10.80 ft/100 yds
• Eye Relief: 3.24 inches
• Exit Pupil (Max/Min): 3.2 mm
• Diopter Range: +/- 2.0 dpt
• Parallax Adjustment: 10 yds to infinity (100 yds parallax-free)
• Coating: Fully Multi-coated
• Tube Construction: One-piece tube, aircraft aluminum
• Elevation Adjustment (Value per Click): 0.1 mrad
• Windage Adjustment (Value per Click): 0.1 mrad
• Turret Style (Elevation): Low-profile, Zero-resettable
• Turret Style (Windage): Low-profile, Zero-resettable
• Travel per Rotation: 10 mrad
• Elevation Adjustment Range: ≥ 20 mrad
• Windage Adjustment Range: ≥ 20 mrad
• Eyepiece Diameter: 1.55 inches / 39.5 mm
• Eyepiece Length: 1.65 inches / 42 mm
• Mounting Length (Rear): 55.50 mm
• Mounting Length (Front): 37.50 mm
• Tube Diameter: 30 mm
• Length: 9.52 inches / 242 mm
• Weight: 478 g / 16.86 oz
• Surface Finish: Matte Black
• Functional Temperature: -20°C to 50°C
• Storage Temperature: -20°C to 50°C
• Submersion Tightness: JIS 7

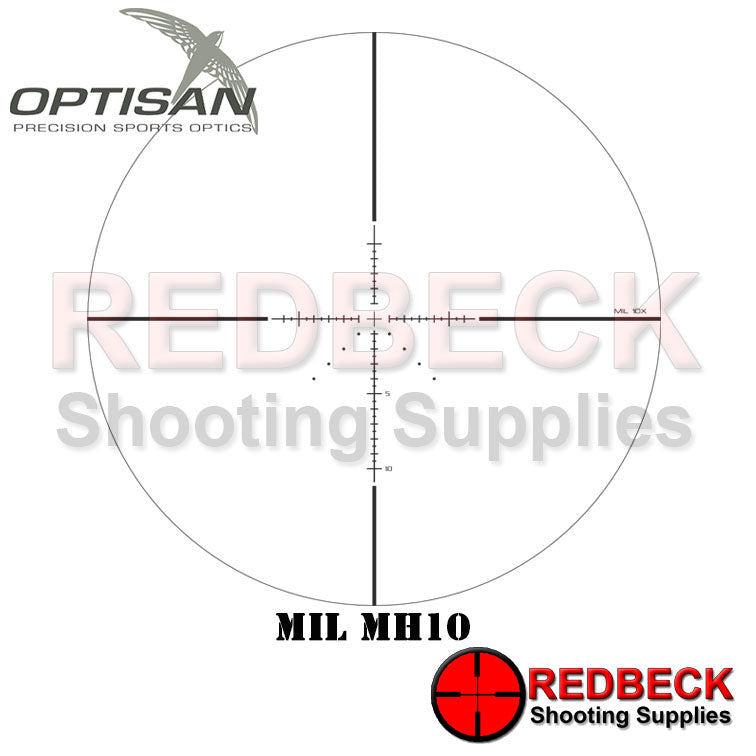

• Reticle: SFP MH10X
• Calibrated Ranging Power: 10x
• Focal Plane: Second
• Illumination: Non-illuminated
