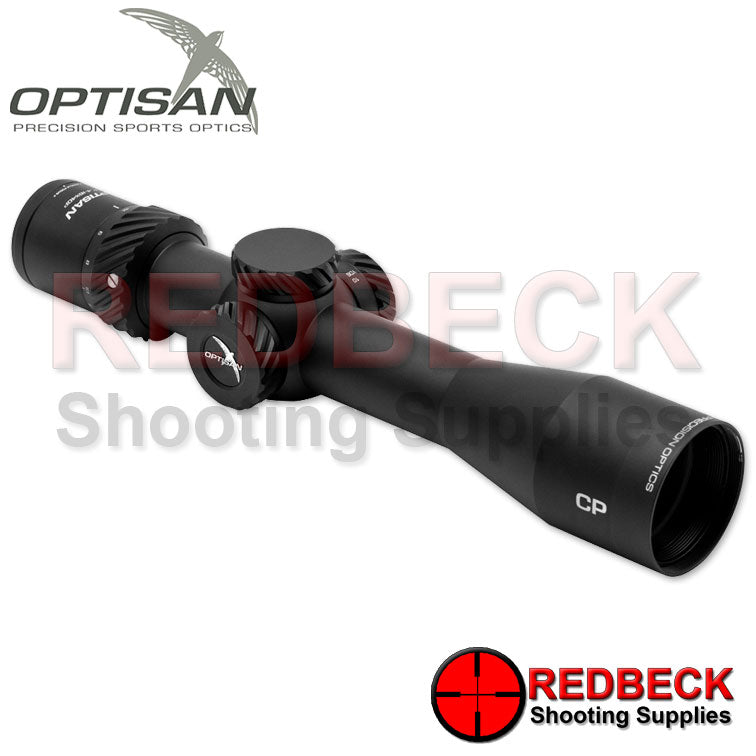

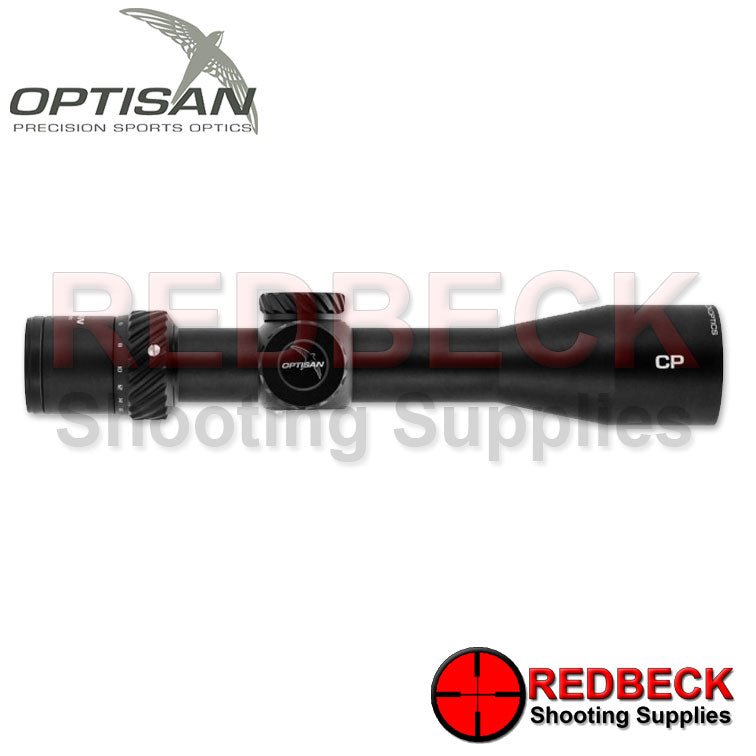

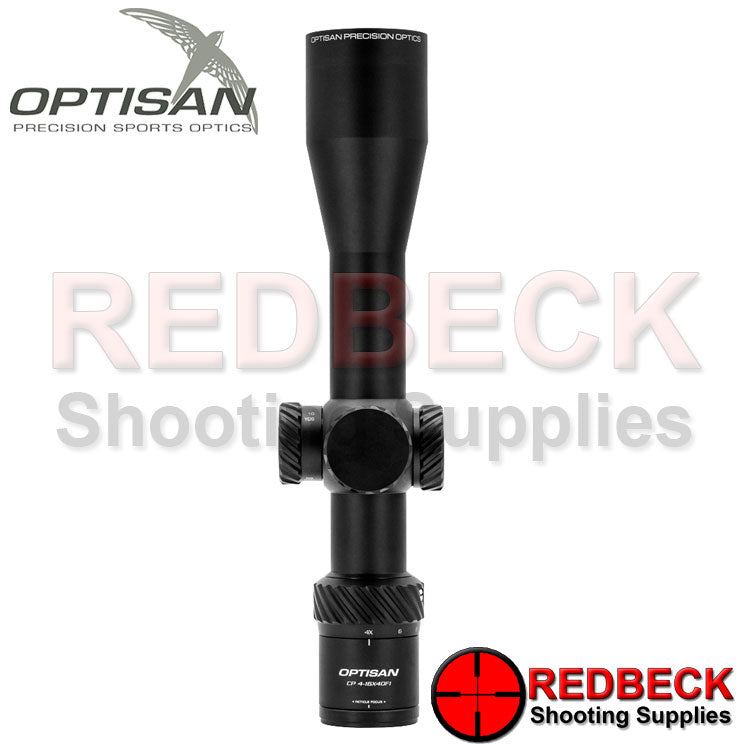

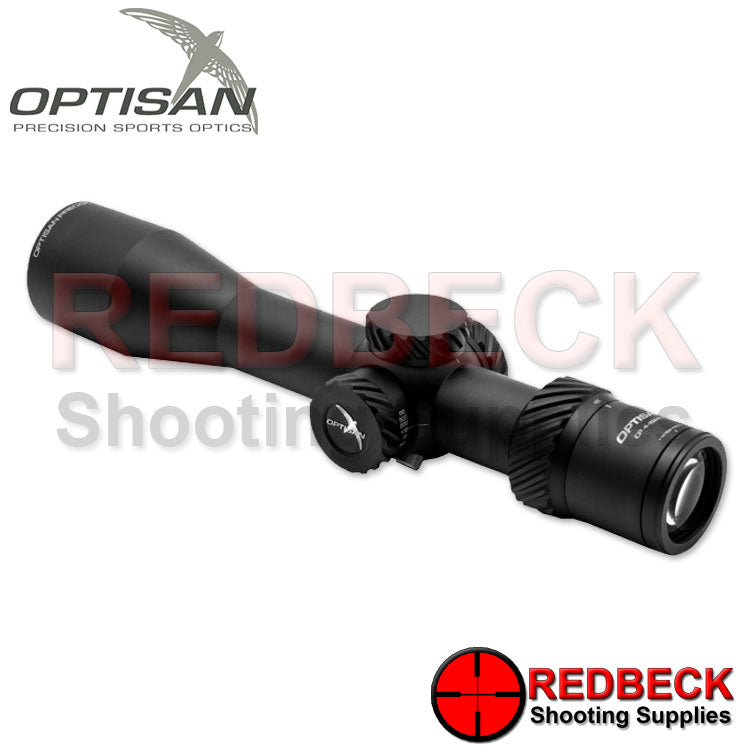

Optisan CP 4-16x40 F1 FFP Non Illuminated F1 MOA Scope

DESCRIPTION

The highly anticipated Optisan CP first focal plane riflescopes have finally arrived. The Optisan Optics CP 4-16x40 F1 FFP is available in both MRAD-based reticles and MOA-based reticles. These come with matching click values to it make sit nice and easy whilst out in the field to make your adjustments and holdovers.

The main reason the first focal plane reticles were introduced to the CP'S was due to the fact that the first focal plane reticles are always consistent no matter what magnification you are on. So with this being an air rifle focus rifle scope, predominantly used by HFT and vermin control, having the ability to call holdoffs using your reticle on every magnification is incredibly useful. This was the feedback received by Optisan and they listened to bring you the Optisan CP 4-16x40.

Much like its second focal plane brother, the CP 4-16x40 measures only 268mm in length and weighs only 530 grams. It features a 30mm main tube and one-piece construction made from aircraft-grade aluminium. If you are buying the first focal plane MRAD riflescope you are going to get a 0.1 MRAD click, and if you are buying the first focal plane MOA, you are going to get a ¼ MOA click. The turrets on these are low profile and under caps.

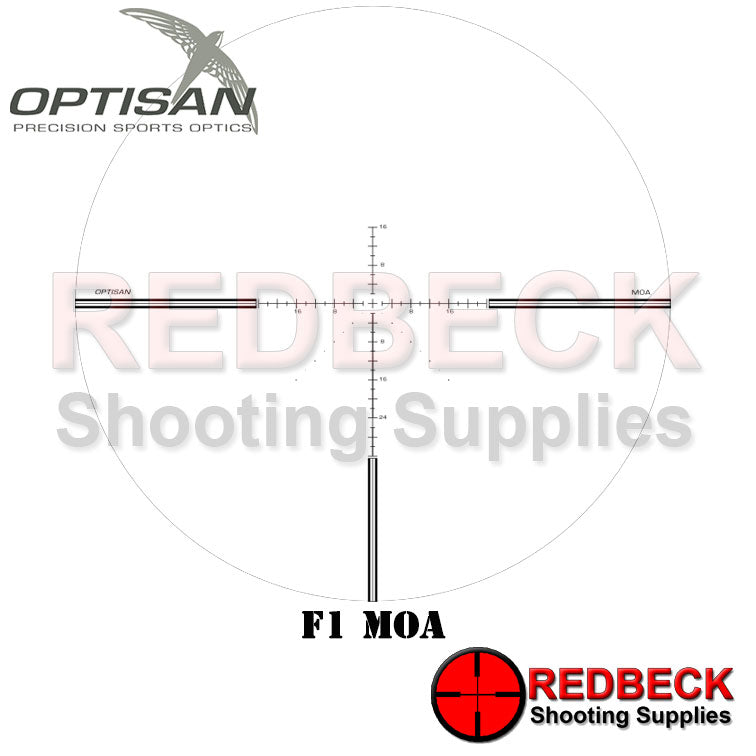

Both the MRAD and the MOA versions of the Optisan CP 4-16x40 F1 come with a non-illuminated reticle and feature a hash-mark reticle which will provide the shooter with more than enough holdover points to accurately call wind calls without having to dial in the turrets, making it a perfect choice for Air Rifle Shooters.

To follow on, the Optisan CP 4-16X40 has parallax adjustments from 10 yards out to infinity and features fully multi-coated lenses which are consistent throughout the CP range of riflescopes which shooters are incredibly happy with.

Compact design
At just 25.4 cm long and weighing less than 0.48 kg, the CP is the ideal companion for compact and lightweight rifles.

Minimized Parallax error

Equipped with a 32mm objective lens, the CP effectively reduces the impact of Parallax error, resulting in minimal shift of impact as you change your head position or distance to target.

This means you can shoot targets at various distances without experiencing any shift in point of impact, making it a valuable asset in competitive shooting scenarios.

Additionally, the parallax adjustment range of the CP ranges from 10 yards up to 500 yards to infinity, ensuring optimal performance across varying shooting distances.

Springer Rated
Champion shooters have field-tested this rugged riflescope for over a year on a springer rifle, proving its ability to withstand double direction recoil of up to 6000j post-barrel muzzle velocity. It’s not just limited to air rifles, as it’s also designed to hold centerfire firearms with ease.

Sleek Design with Extremely low-profile turret

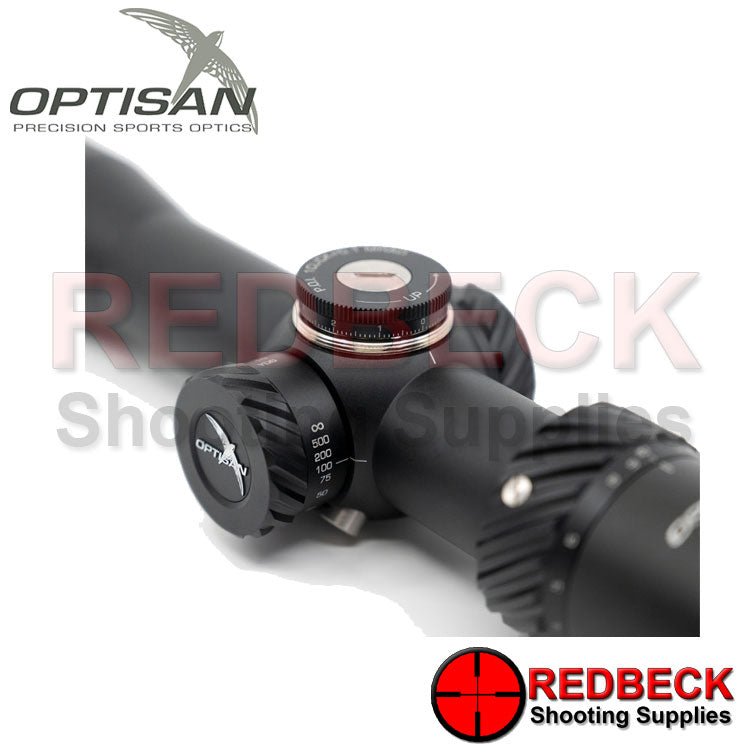

All stainless steel extremely low-profile turret with 10 MRAD of adjustment per turn. No obstruction of view even when the night vision eyepiece is attached.

What comes in the box
2.5” sunshade, Lens covers

SPECIFICATION

• Magnification (High):  16X ±5%
• Magnification (Low):  4X ±5%
• Objective Diameter (mm):  40mm
• Outer dia. Objective (mm):  48mm
• FOV (min.mag(ft/100yds):  26.20
• FOV (max.mag(ft/100yds):  6.55
• Eye relief (in): 3.5'' - 3.3''
• Exit Pupil (Max mag. (mm): 10 mm
• Exit Pupil (min. mag. (mm): 2.5mm
• Diopter Range (dpt): + /- 2.0
• Parallax Adjustment:  10yds - infinity
• Coating: Fully Multi-coated
• Tube Construction: One-piece tube, aircraft
• Elevation Adjustment (value per click): 0.1 mrad
• Windage Adjustment (value per click): 0.1 mrad
• Turret Style (Elevation): Low-profile, Zero-resettable
• Turret Style (Windage): Low-profile, Zero-resettable
• Length (mm): 268 mm
• Weight (oz): 18.69 oz
