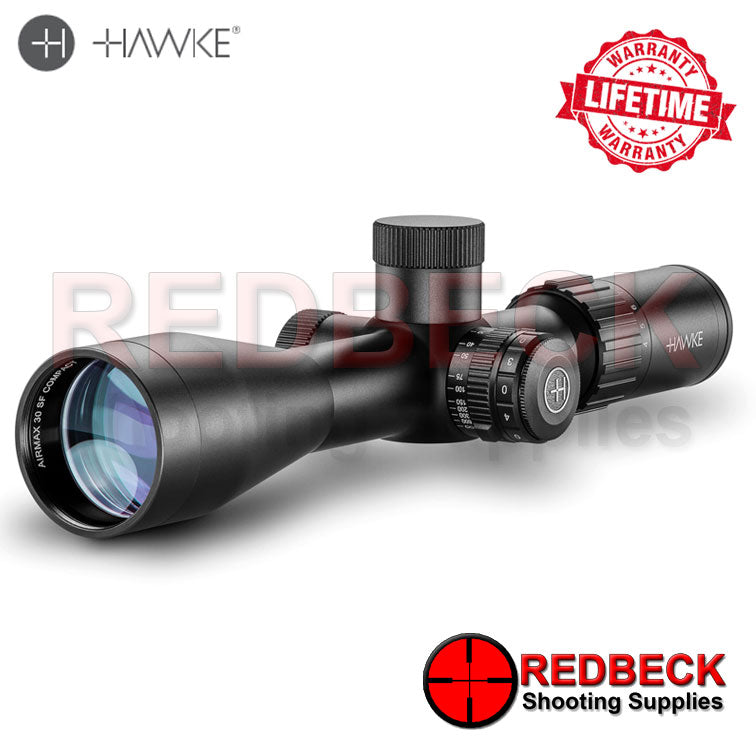

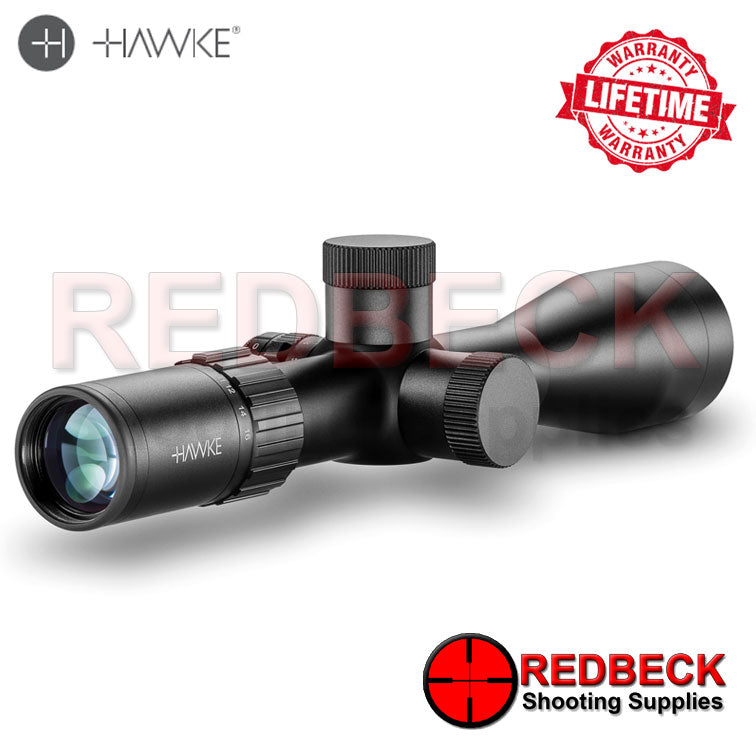

Hawke Airmax 30 3-12x40 WA SF Compact Scope
DESCRIPTION

The Hawke Airmax 30 3-12x40 Wide Angle Side Focus Compact Scope is a compact tactical scope. The Airmax Compact scopes feature Hawkes H2 optics in a variety of configurations designed to suit airgun characteristics.

  • Capped Target Turrets
  • 30mm Mono-Tube Chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 Layer Fully Multi-Coated Lenses
  • High Torque Zoom Ring
  • Fast Focus Eyebell
  • AMX Reticle Designed For Airguns



AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

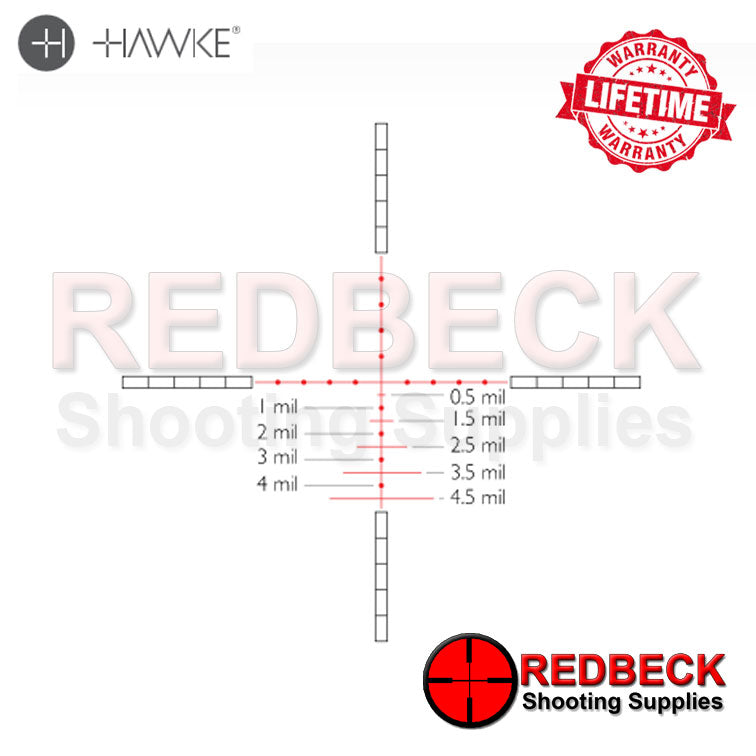

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

SPECIFICATION


Length:
277mm 10.9"
Weight:
589g 20.8oz
Eye relief:
76mm  3"
Focus/Parallax Side Focus 9m - ∞ 10yds - ∞
Field of View:
14.6 - 3.6m @100m
43.7 - 10.9ft @100yds
Exit Pupil:
13.3-3.3mm
0.52-0.13"
Chassis 30mm Mono-tube
Optical System 3-12x
Objective  40mm
Illumination  Red (6 Levels With Off Positions In-Between)
Reticle  AMX IR
Elevation Increment  1⁄10 MRAD
Elevation Adjustment Range:  30 MRAD
Windage Increment  1⁄10 MRAD
Windage Adjustment Range  30 MRAD
Material  Aluminium
Ocular Type  Fast Focus
Lens Coating  Fully Multi-Coated - 16 Layers
Power Selector  Style Knurled Posi-Grip
Focal Plane Second Focal Plane (SFP)
Turret Caps  Yes
Turret Type  Capped Target Turrets
VIDEOS


Hawke Airmax 30 3-12x40 WA SF Compact Scope

Regular price £296.00 Sale price (RRP £329.00)
In Stock
